HSK不锈钢热缩刀柄-曲面超细型
产品特点
高动平衡性，动平衡等级G2.5@25000rpm或U<1gmm
特殊不锈钢材质，装刀5000次精度不丢失
L<120组合跳动精度≤0.003mm；L=120,组合跳动精度≤0.004mm
产品详情
·产品规格：
| 型号 | 夹持径d | D | D1 | L | 最小装刀深度E | t |
| HSK63A-SHR4S-120C | 4 | 7 | 53 | 120 | 12 | 1.5 |
| HSK63A-SHR4S-150C | 4 | 7 | 53 | 150 | 12 | 1.5 |
| HSK63A-SHR4S-180C | 4 | 7 | 53 | 180 | 12 | 1.5 |
| HSK63A-SHR6S-120C | 6 | 9 | 53 | 120 | 18 | 1.5 |
| HSK63A-SHR6S-150C | 6 | 9 | 53 | 150 | 18 | 1.5 |
| HSK63A-SHR6S-180C | 6 | 9 | 53 | 180 | 18 | 1.5 |
| HSK63A-SHR8S-120C | 8 | 11 | 53 | 120 | 24 | 1.5 |
| HSK63A-SHR8S-150C | 8 | 11 | 53 | 150 | 24 | 1.5 |
| HSK63A-SHR8S-180C | 8 | 11 | 53 | 180 | 24 | 1.5 |
| HSK63A-SHR10S-120C | 10 | 13 | 53 | 120 | 30 | 1.5 |
| HSK63A-SHR10S-150C | 10 | 13 | 53 | 150 | 30 | 1.5 |
| HSK63A-SHR10S-180C | 10 | 13 | 53 | 180 | 30 | 1.5 |

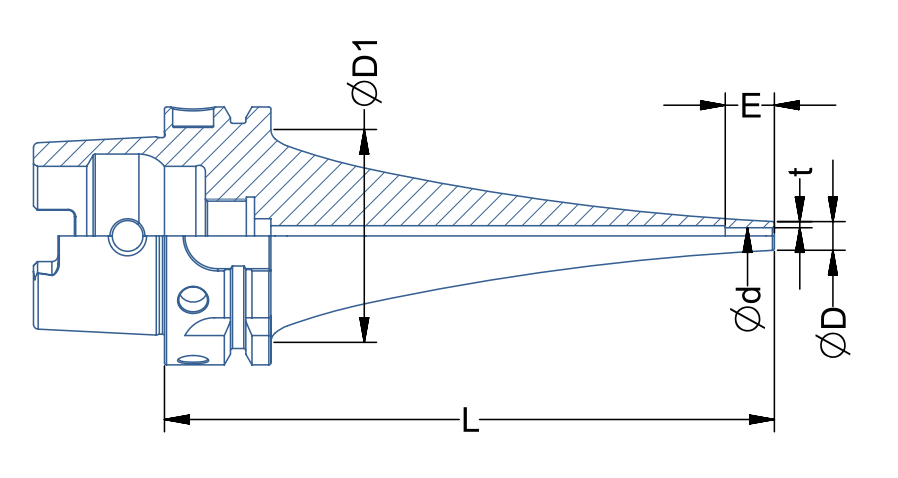

· 产品尺寸图（单位mm）:
