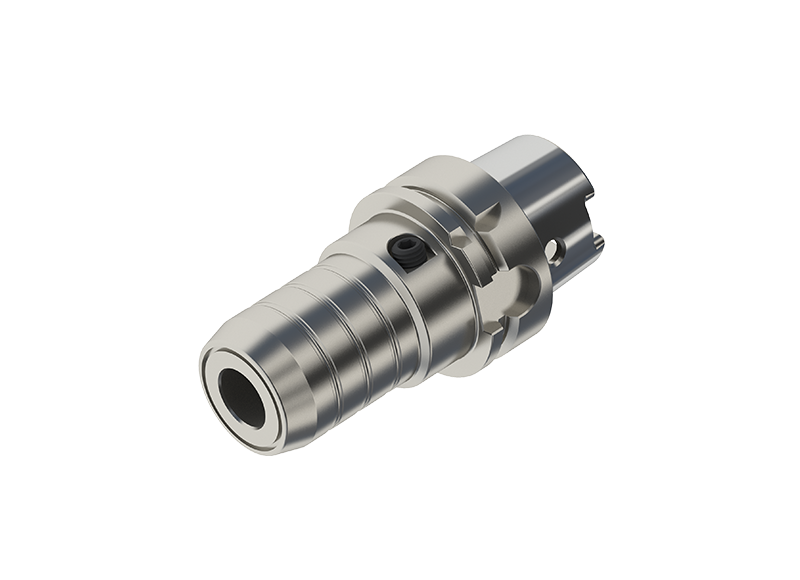

HSK液压刀柄
产品特点
液压阻尼抗震，有效延长刀具寿命
组合跳动精度≤0.003mm
装刀方便，一个扳手实现装刀
产品详情
·产品规格：
| 型号 | 夹持径d | D | D1 | L | L1 | 最小装刀深度E | 最大装刀深度H |
| HSK40E-HDC6-70 | 6 | 26 | 34 | 70 | 36 | 27 | 40 |
| HSK40E-HDC8-70 | 8 | 28 | 34 | 70 | 36 | 27 | 40 |
| HSK40E-HDC10-75 | 10 | 30 | 34 | 75 | 41 | 31 | 45 |
| HSK40E-HDC12-80 | 12 | 32 | 34 | 80 | 46 | 36 | 50 |
| HSK50A-HDC6-75 | 6 | 26 | 41 | 75 | 29 | 27 | 40 |
| HSK50A-HDC8-75 | 8 | 28 | 41 | 75 | 29 | 27 | 40 |
| HSK50A-HDC10-80 | 10 | 30 | 41 | 80 | 34 | 31 | 45 |
| HSK50A-HDC12-85 | 12 | 32 | 41 | 85 | 39 | 36 | 50 |
| HSK50A-HDC16-90 | 16 | 38 | 41 | 90 | 44 | 39 | 55 |
| HSK50A-HDC20-90 | 20 | 42 | 41 | 90 | 44 | 41 | 55 |
| HSK63A-HDC6-80 | 6 | 26 | 45 | 80 | 34 | 27 | 40 |
| HSK63A-HDC6-100 | 6 | 26 | 45 | 100 | 54 | 27 | 40 |
| HSK63A-HDC8-80 | 8 | 28 | 45 | 80 | 34 | 27 | 40 |
| HSK63A-HDC8-100 | 8 | 28 | 45 | 100 | 54 | 27 | 40 |
| HSK63A-HDC10-80 | 10 | 30 | 45 | 80 | 34 | 31 | 45 |
| HSK63A-HDC10-100 | 10 | 30 | 45 | 100 | 54 | 31 | 45 |
| HSK63A-HDC12-80 | 12 | 32 | 50 | 80 | 34 | 36 | 50 |
| HSK63A-HDC12-100 | 12 | 32 | 50 | 100 | 54 | 36 | 50 |
| HSK63A-HDC16-80 | 16 | 38 | 50 | 80 | 34 | 39 | 55 |
| HSK63A-HDC16-100 | 16 | 40 | 50 | 100 | 54 | 39 | 55 |
| HSK63A-HDC20-100 | 20 | 44 | 55 | 100 | 54 | 41 | 55 |
| HSK63A-HDC25-120 | 25 | 49 | 62 | 120 | 74 | 47 | 65 |
| HSK63A-HDC32-125 | 32 | 60 | 75 | 125 | 79 | 51 | 70 |
· 产品尺寸图（单位mm）:
